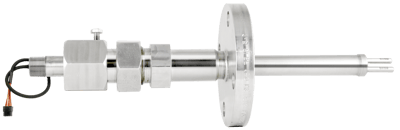

Kayden CLASSIC 814 Spare Sensor, Retractable Flanged Packing Gland, P22 Series
Brand: Kayden Instruments
- Replacement Sensor for Kayden CLASSIC 814 Series
- Process Connection
- Flanged Retractable Packing Gland
- Raised Face or RTJ (Ring-Type Joint)
- 1-1/2", 2", 3", 4"
- ANSI Rating: 150
- Adjustable Set Point Range
- 0-254 feet/s, 0-77 meters/s
- Insertion 'U' Length
- Available in 1/2" (1 cm) increments
- Min. 2.5" - Max. 120" (6.4 - 305 cm)
- Temperature Range (Sensor)
- -40° to 160° C, -40° to 320° F
- Materials of Construction (Sensor and Flange)
- 316/316L Stainless Steel
- Titanium Grade 2
- Hastelloy® C-276
- Monel 400
- Sensor Connection
- Molex 8-pin
- Approvals (with 814 switch)
- UL, CSA, Single Seal, NACE
Specifications
Brand
Approvals & Certifications
- CRN - Canadian Registration Number - the Kayden Classic P22 Sensor (814 Series) does not have a CRN Number
Flange Material
- 316, 316L Stainless Steel
- Other Exotic Metals Available
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - 150#
Flange Size - 10” (DN 250)
- 10” (DN 250) - 150#
Flange Size - 2” (DN 50)
- 2” (DN 50) - 150#
Flange Size - 3” (DN 80)
- 3” (DN 80) - 150#
Flange Size - 4” (DN 100)
- 4” (DN 100) - 150#
Flange Size - 5” (DN 125)
- 5” (DN 125) - 150#
Flange Size - 6” (DN 150)
- 6” (DN 150) - 150#
Flange Size - 8” (DN 200)
- 8” (DN 200) - 150#
Flange Type
- Raised Face (RF)
- RTJ - Ring Typical Joint
Insertion 'U' Length
- Custom 'U' Lengths 2.5” to 120” (6.4 cm to 305 cm) Available in 1/2” (1.0 cm) Increments.
Operating Pressure - Sensor
- Maximum
Operating Temperature - Sensor
- -45° to 200° C (-50° to 392° F)
Process Connection Style
- Flanged Retractable
Response Time
- Approximately 0.5 to 30 seconds
Retraction Assembly
- Low Pressure with Security Chain, 316, 316L Stainless Steel (MWP 125 psi)
- Low Pressure, 316, 316L Stainless Steel (MWP 50 psi)
- Medium Pressure, 316, 316L Stainless Steel (MWP 500 psi)
Sensor, Probe Connection Type
- Molex 8-Pin
Sensor, Probe Style
- Insertion
Wetted Materials
- 316 Stainless Steel
- Other Metals Available
